Posted by Mike Kennedy on July 18, 2014
Whether you’re cooling off, rinsing off, or actually bathing, an outdoor shower is a fun and relatively easy summer DIY project that you’ll find yourself using even more than you imagined. Of course, the easiest installation is one involving a garden hose,an Eccotemp L5, and tree branch, but you can make a free-standing one just as easily by following the steps below:
MATERIALS AND TOOLS
Two 8-foot lengths of 4″ x 4″ lumber (cedar, redwood or pressure-treated are best)
Two 8-foot lengths of 1″ x 4″ lumber
Decking or galvanized wood screws in 4-1/2,″ 3-1/2,” and 2-1/2″
Outdoor wood sealer
Post hole digger
Pea gravel or small stones
Nylon plumbing tape
Four 1/2″ pipe straps
Electric drill and 5/8″ spade bit
Circular or miter saw
Garden hose and outdoor spigot
Eccotemp L5 portable tankless water heater
1. Choose the location of your outdoor shower. Select an area that’s relatively level; a slight grade will promote runoff. Consider it’s proximity to your outdoor spigot and the relative privacy it affords.
2. Build the base. Cut one 4″ × 4″ into four equal 23″ lengths. Build a basic square by staggering the ends and securing with 4-1/2″ screws. Then, cut the 1″ × 4″s into seven 26-1/2″ lengths and space them evenly on top of the base, leaving about a 1/4″ between boards for drainage. Secure the slats to the frame with 3-1/3″ screws. Finish the entire base and the uncut 8′ length of 4″× 4″ with wood sealer and allow to dry.
3. Install the shower. Dig a 12″ deep hole with a post hole digger, and insert the 8′ 4″ × 4″. You can use concrete to secure it, or just fill the hole with dirt. Place the shower base next to the upright 4″× 4″, mark its location, then remove the base and cover the ground with pea gravel or small stones to help with drainage. Place the base on top of the gravel.
4. Install the plumbing. Use a 5/8″ spade bit to drill a hole all the way through the 4″ × 4″ about 6″ above the ground and 2-1/2″ above the base. Connect the plumbing in the following order: Shower head – shower arm – 90° elbow – 48″ length – faucet – 24″ length – 90° elbow – 6″ length. Use nylon plumbing tape at each joint. Then, stick the 6″ horizontal pipe length through the hole in the base of the 4″× 4″upright, and set the plumbing flush to the face. Use 2-1/2″ screws to secure the plumbing to the 4″ × 4″ with the pipe straps.
5. Add the water. Attach the hose to the coupler in the back of the shower. You may want to purchase a Y-splitter for your outdoor spigot so that you can run an additional hose for lawn and gardening tasks. Test the water, and enjoy!
Here are some other outdoor showers, set up with our Eccotemp L5!
Who ever said you had to rough it while out in the wilderness. With our variety of Eccotemp Tankless Water Heaters you can now enjoy the luxuries of home, while on the go. Use them for campsites, cabins, trailers, RVs and more. You can instantly receive hot water for showering, doing the dishes, and keeping the kids and [...]
Most homes and many apartment buildings are set up with individual tank water heaters that store up to 50 gallons. The waste is enormous: hot water accounts for 15-30% of your home's energy use. [...]
Looking for a tankless water heater to fit your needs can seem overwhelming, but once you sit down and compare the models, different specs, and recommended uses, it can become a breeze. Using a model for something other than what its recommended for, can be dangerous, void your warranty, and simply not be compatible with [...]
Are you living off the grid? Is there no electrical power supply, but still wanting some nice hot water for showers or dishes. No Problem. Our L5, and L10 tankless hot water heaters are perfect for your situation, running off only 2 D-cell batteries. Whether you require a portable outdoor shower or a permanent installation for [...]
Many customers use our L7 as a outdoor shower for recreational purposes. Its lightweight, portable, and easy to hook up. If you've been thinking about doing the same but don't know where to start then check out this review, walk-through, and photos provided to us by a customer in Northern New England!"We have really been [...]
Your unit coming on and turning off usually points to a water pressure or flow issue. This is due to either low or high water pressure or flow. The L5, L7, and L10 all require between 20-80 PSI. Now the tricky part comes with water flow,even though you may have to correct the PSI [...]
Our units are pressure activated units which can sometimes make them a little more difficult to use when your water source is being drawn from a pump. They main issue you will experience is when you are trying to use a pump that does not deliver a consistent amount of water pressure and flow to [...]

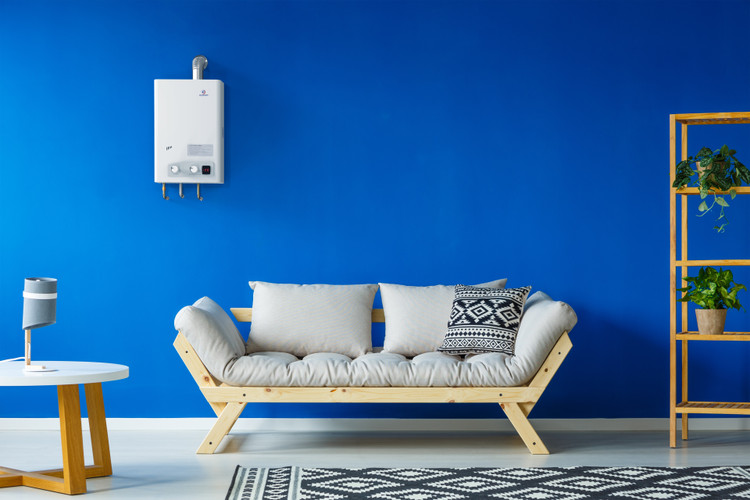

The Eccotemp FVI12 Tankless Water Heater is an indoor tankless water heater designed for small to medium hot water production where you need more than one hot water application at the same time. The Eccotemp FVI12 Tankless Water Heater is perfect for vacation cabins, cottages and smaller homes.Eccotemp FVI12 Tankless Water Heater comes with a [...]
